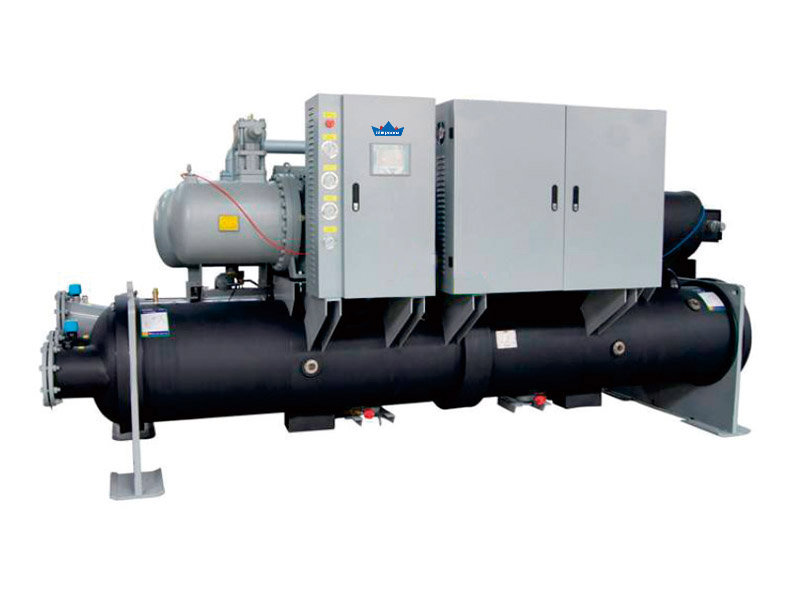

| 满液式螺杆冷水机组参数表 Flooded Water Screw Chiller (double compressor) Technical Parameters | ||||||||||||
| 型号 Model No. of Simpsan | SPF-760W | SPF-820W | SPF-1000W | SPF-1040W | SPF-1250W | SPF-1300W | SPF-1500W | SPF-1620W | SPF-1780W | SPF-2000W | ||
| 使用电源 Power supply | 3Φ-50Hz-380V | |||||||||||
| 制冷量 Rated Cooling Capacity | KW | 756 | 815.8 | 990.6 | 1035.4 | 1240.2 | 1287.8 | 1499.6 | 1614.2 | 1776.2 | 1982.2 | |
| Kcal/h | 650160 | 701600 | 852000 | 890600 | 1066600 | 1107600 | 1289600 | 1388200 | 1527600 | 1704800 | ||
| 机组运行电流Operating current | A | 265.2 | 292.8 | 338.6 | 365 | 428.8 | 438 | 505.6 | 564.8 | 600.6 | 666 | |
| 冷冻水量Chilled water flow | m³/h | 130 | 140 | 172 | 180 | 214 | 222 | 258 | 278 | 306 | 342 | |
| 冷却水量Cooling water flow | m³/h | 158 | 172 | 206 | 214 | 258 | 266 | 310 | 336 | 368 | 410 | |
| 压缩机 Compressor | 型式type | - | 半密闭螺杆式 Semi-hermetic screw type | |||||||||
| 数量Qty. | PCS | 2 | ||||||||||
| 启动方式Starting mode | - | Y-Δ | ||||||||||
| 容量控制Capacity control | % | 25%~100% 有段控制或无段控制 25%~100% step or stepless control | ||||||||||
| 功率Power | KW | 154.6 | 173 | 200 | 214.4 | 250.8 | 258.8 | 301.2 | 337.4 | 358.2 | 396.8 | |
| 冷媒 Refrigerant | 种类Model | - | R22 | |||||||||
| 容量Capacity | Kg | 200 | 200 | 220 | 220 | 280 | 280 | 300 | 300 | 330 | 400 | |
| 蒸发器 Evaporator | 型式type | - | 满液式高效壳管式换热器 Flooded high efficient shell & tube heat exchanger | |||||||||
| 管径Pipe dia. | mm | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 200 | 250 | |
| 冷凝器 Condenser | 型式type | - | 卧式壳管式 Horizontal Shell & tube type | |||||||||
| 管径Pipe dia. | mm | 150 | 150 | 200 | 200 | 200 | 200 | 200 | 200 | 250 | 250 | |
| 保护装置 Safety Device | 高底压开关,防冻保护,可溶栓/安全阀,过载保护装置,线圈过热保护器,温度自动保护开关等. High & low pressure protection, Anti-freezing protection, Safety valve, Overload protection,coil overheating protection, Temperature automatic protection switch etc. | |||||||||||
| 外形尺寸 Dimension | 长(L) | mm | 4520 | 4520 | 4520 | 4520 | 4520 | 4520 | 4520 | 4520 | 4520 | 4520 |
| 宽(W) | mm | 1500 | 1500 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | 1600 | |
| 高(H) | mm | 1900 | 1900 | 1900 | 1900 | 1900 | 1900 | 2000 | 2000 | 2000 | 2000 | |
| 重量 Weight | Kg | 4400 | 4800 | 5100 | 5200 | 5400 | 5600 | 5800 | 6100 | 6400 | 6800 | |
| Re: | 1.以上规格参数能力的测定工况:冷冻水入口温度12°C,出口温度7°C,冷却水入口温度30°C,出口温度35°C,污垢系数0.0001mm²°C\W; | |||||||||||
| Cooling conditions for above specifications: Chilled water inlet 12°C, outlet 7°C, cooling water inle30°C, outlet 35°C, fouling factor 0.0001mm²°C\W; | ||||||||||||
| 2.以上规格内容会因产品改良而有所变动,恕不另行通知,有特殊要求,定货前请提出要求规范. | ||||||||||||
| The above specification will change due to product improvement, without prior notice. Please contact us before order if you have special requirements. | ||||||||||||
